High tensile Hot dip Galvanized Oval wire for cattle fence

High Tensile Hot dip Galvanized Oval wire is made from SAE1045,SAE1055,SAE1065,it is widely used as cattle fence in southAmercian, the mainly size is 2.2x2.7mm,2.4x3.0mm,2.0x2.5mm, and so on

  • 2.2x2.7mm,2.4x3.0mm,2.0x2.5mm (factory )
  • Mingrui
  • 72172000
  • JinNuo
  • China
  • will done before loading
  • Xingang,China
Size:
Quantity:

We are the factory of high tensile Hot dip Galvanized Oval wire ,now we have the stock, welcome to inquiry.

1. Specifications for galvanizedl steel oval wire:

galvanized steel oval wire is made of high carbon steel. It is widely used in South Amercia countries.

Common specification:

galvanized  oval steel  wire
Size :2.7/2.2mm,3.0/2.4mm
Zinc coating rate:40g/m2-300g/m2
Coil weight: 2
0-45 kg



2. Applications for galvanized oval steel wire

Agriculture

Fencing

Horticulture

Fences to cattle farms in special sites as flooded lands and seashore farms

Vineyard

Trellis

Horticulture structures

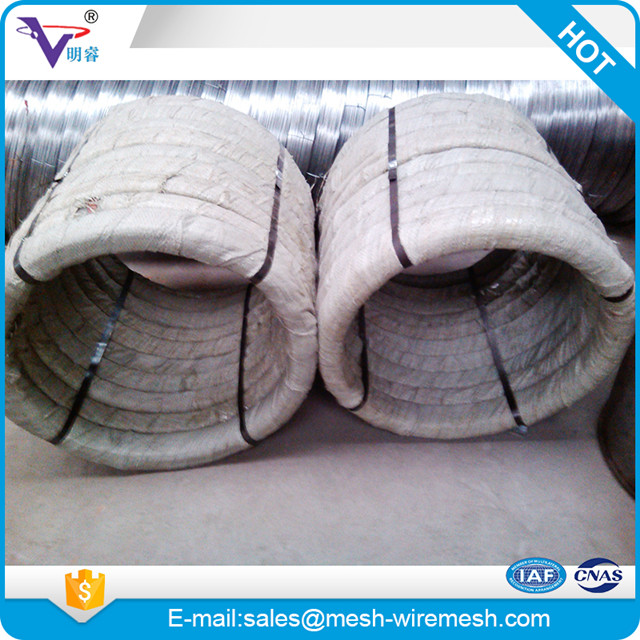

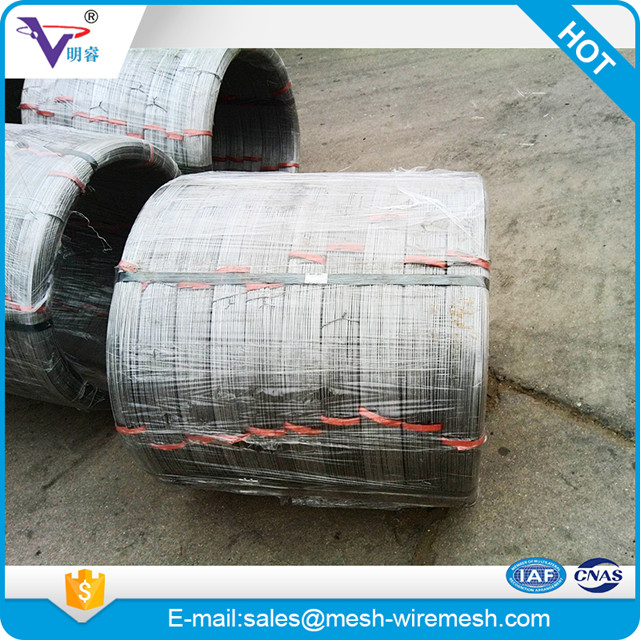

3.packing coil

Galvanized Oval wire is made from High tensile steel wire,the material is SAE1045,SAE1055,SAE1065, it is one hot dip Drawing wire.

Common specification:

galvanized  oval steel  wire
Size :2.7/2.2mm,3.0/2.4mm
Zinc coating rate:40g/m2-300g/m2
Coil weight: 2
0-45 kg

4.Specification:

Size

Specification

Breaking Force

Zinc Coating

Diameter Tolerance

Length

Weight

17/15

3.0*2.4mm

700kgf

Min.80g/m2

±0.06mm

1000M

45kg

16/14

2.7*2.2mm

600kgf

Min.80g/m2

±0.06mm

1250M

45kg

15/13

2.4*2.0mm

500kgf

Min.80g/m2

±0.06mm

1500M

45kg

14/12

2.2*1.8mm

400kgf

Min.80g/m2

±0.06mm

1900M

45kg

N°12

2.4*2.8mm

500Mpa

Min.50g/m2

±0.06mm

465M

25kg

N°6

4.55*5.25

500Mpa

Min.50g/m2

±0.06mm

170M

25kg

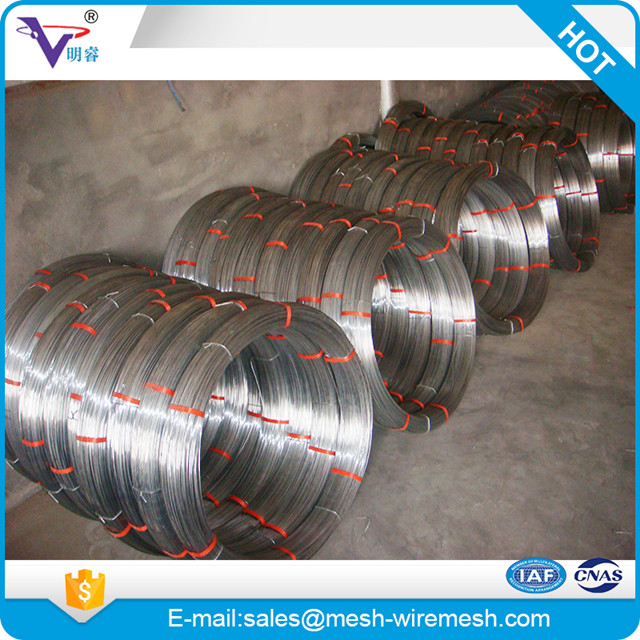

High tensile Oval wireHigh tensile Oval wire
