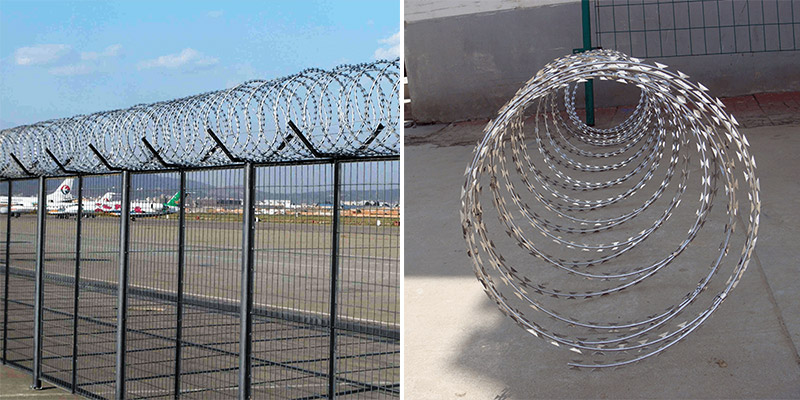

Razor barbed wire /Concertina wire is made from High tensile hot dip Galvanized wire and hot dip Galvanized sheet.

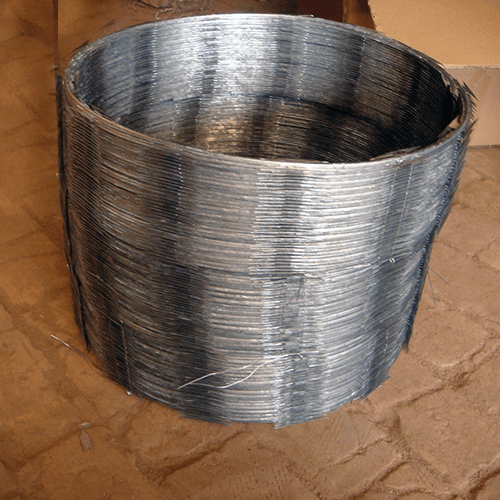

Anping Jin Nuo Hardware & Wire Mesh Product Co.,Ltd supply high quality galvanized and plastic coated Concertina razor wire, complete specifications to meet customers' different requires. it can be divided into:Spiral cross razor wire, straight razor wire, flat razor wire coil.
Normal products Concertina Razor wire details:
Concertina Razor wire material : high quality stainless steel wire and hot-dipped galvanized sheet
Razor Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65

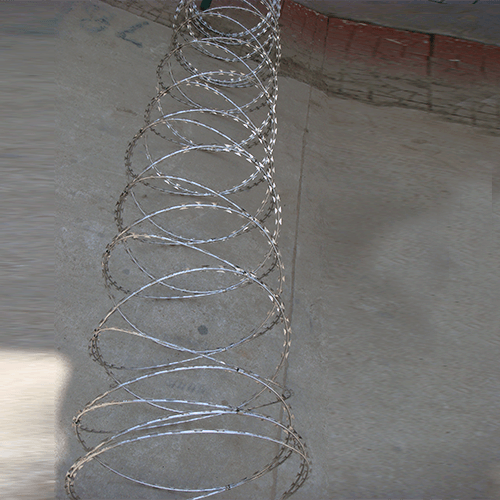

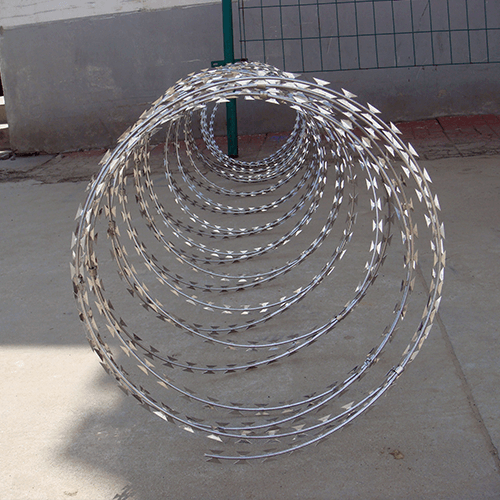

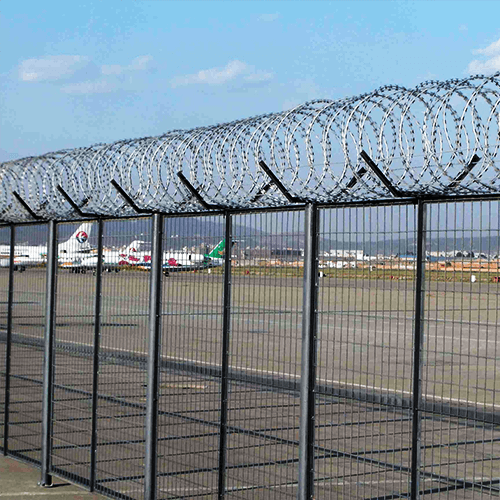

Razor wire types: stright line razor wire, single coil conertina wire, double coil wire, welded razor mesh fence.
Thickness: 0.45-0.5mm Wire Dia.: 2.5-3.0mm

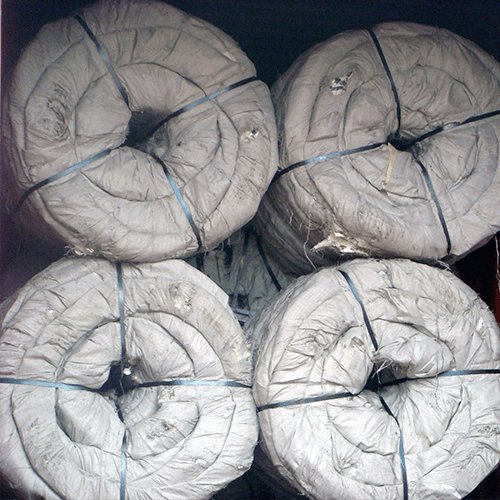

Package:
1. Plastic film inside, outside weaving bag.
2. Plastic film inside, outside hession bag.
3. Paper carton packing
| Reference Number | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Razor barbed wire /Concertina wire is made from High tensile hot dip Galvanized wire and hot dip Galvanized sheet.
Anping Jin Nuo Hardware & Wire Mesh Product Co.,Ltd supply high quality galvanized and plastic coated Concertina razor wire, complete specifications to meet customers' different requires. it can be divided into:Spiral cross razor wire, straight razor wire, flat razor wire coil.
Normal products Concertina Razor wire details:
Concertina Razor wire material : high quality stainless steel wire and hot-dipped galvanized sheet
Razor Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65
Razor wire types: stright line razor wire, single coil conertina wire, double coil wire, welded razor mesh fence.
Thickness: 0.45-0.5mm Wire Dia.: 2.5-3.0mm
Package:
1. Plastic film inside, outside weaving bag.
2. Plastic film inside, outside hession bag.
3. Paper carton packing
| Reference Number | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
