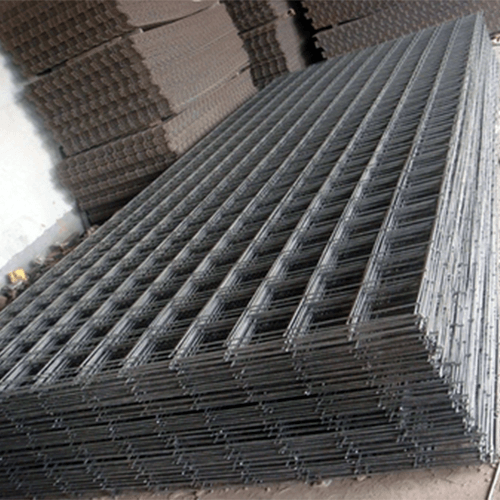

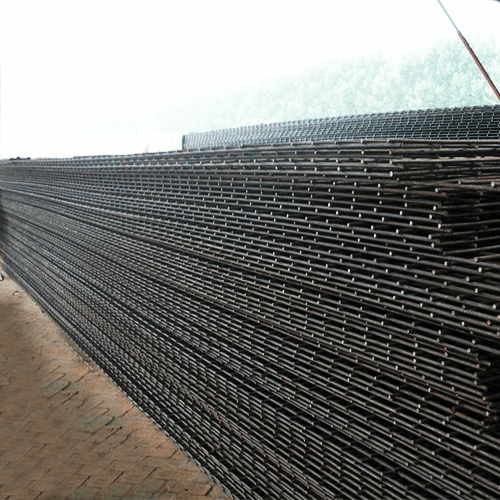

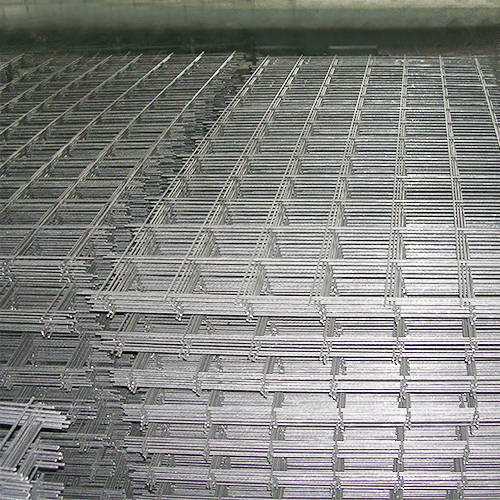

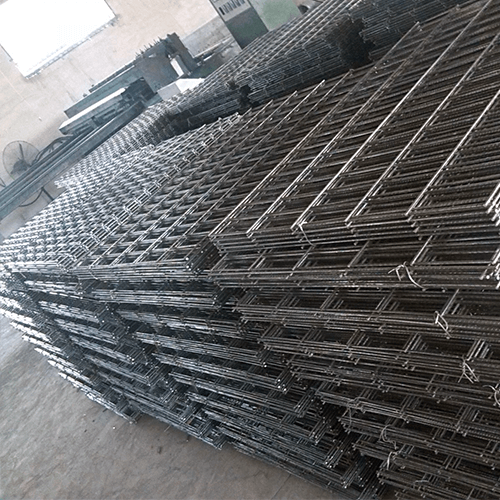

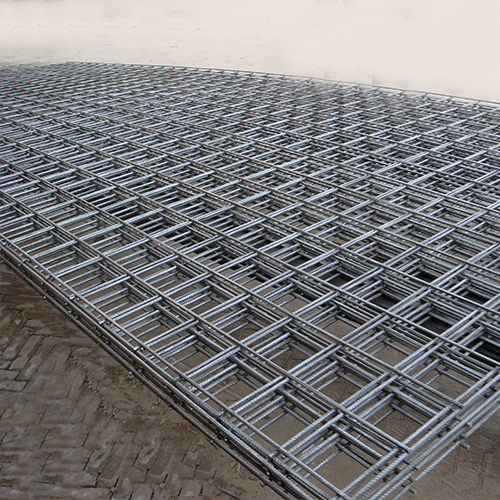

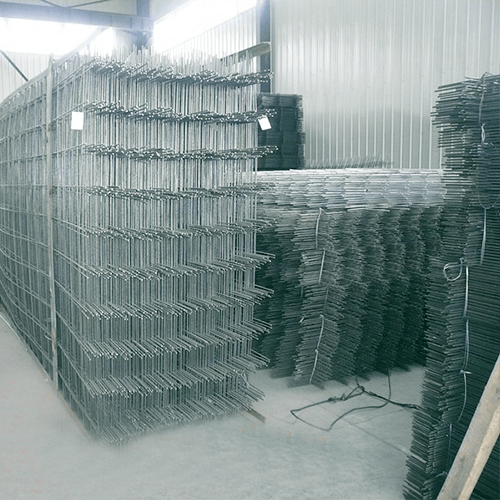

Reinforcement Welded Mesh

reinforcing steel welded mesh made of low carbon steel wire rod, which undergo a cold-rolling and straightening process and arranged vertically in proper spacing in the welding machine at the line wires and cross wires
  • JINNUO

  • Hebei Anping

  • ISO9001

  • Xingang, Tianjin

Quantity:
1.reinforcing steel welded mesh made of low carbon steel wire rod, which undergo a cold-rolling and straightening process and arranged vertically in proper spacing in the welding machine at the line wires and cross wires, joint together by mean of electric resistance spot-welding, also directly welded with hot rolled wire rods
 The reinforcing mesh has following merits:
 Great hardness, good elasticity, uniformity spacing high welding strength, hard to deform by trample
2. Properties of products
Iterm HRB-335Hot-rolled HRB-335Hot-rolled HRB-550cold-rolled
Tensilestrength
(MPA)
.>490 .>570 >550
Yield strength
(MPA)
 >335 >400 >550
Elongation % >16 >14 >8
Shearing force
  (N)
>150 x AS .150 XAS >150 XAS
3.Technical standard:
 Reinforcing weld mesh is widely used in reinforced concrete structures of multi-storey and high building, airport runways, highways, tunnels, concrete pipes, bridges, water conservancy dam foundation, piers, warehouses and sewage treatment tanks and so on.
We not only produce as per the national standard of welded mesh fabric for reinforcement of concrete but also the products according to the AS/NZS 4671:2001( Australian and New Zealand standard)
4.The specification of reinforcing mesh
Material: HRB400, CRB550, CPB550 steel bar.
Wire Diameter:3mm--14mm
Aperture: the Horizontal from 50mm to 200mm
                  the Vertical from 25mm to 500mm
Mesh Width:0.5m--2.4m
Mesh Length: 1m--12m
Steel bar welded reinforcement is well received and popularly used as a kind of new, efficient and excellent quality concrete structure steel materials in various industrial and civil buildings. It is mainly used in making of floors, ceilings, wall body, concrete road, bridge surface, airport, tunnel lining, concrete piping, etc.
Also known as: steel welded mesh, welded steel Mesh Panels. Longitudinal reinforcement and transverse reinforcement spacing arrangement and each other at right angles, all of cross point welded together.
1.Technology: Steel bar construction mesh using special welding net machine, welding procedures by computer control of production, welding mesh uniform, good quality welding, mechanical properties of steel before and after welding was almost unchanged.
2.Specification: diameter of 4-14mm, which can be 0.5mm in diameter into the class.
Consider the transport conditions,  length should not exceed 12m, the width should not exceed 3.4m. spacing of 150 ~ 300mm.
 3.Application: It is widely used in highway construction of cement concrete pavement, Bridge Construction, Tunnel lining,etc.
Mesh reinforcement in the cement concrete pavement engineering, the bar diameter not less than 8mm, the longitudinal reinforcement spacing should not exceed 200mm, the spacing of transverse reinforcement should not exceed 300mm
 Reinforcing welded mesh in bridge engineering, reinforced gateway distance can be 100 -200mm, diameter should be 6 a l0mm. Steel mesh vertical, horizontal should be equal spacing, welded from the top surface of the protective layer thickness of not less than 20mm.
 Steel mesh in the tunnel lining, reinforced steel mesh spacing of 150 ~ 300mm. Can be 150mm x150mm 200mm x200mm 200mm x250mm 250mm x 300mm, 300mm x300mm combinations. Overlap length of the steel mesh should not be less than 30d (d is the bar diameter).

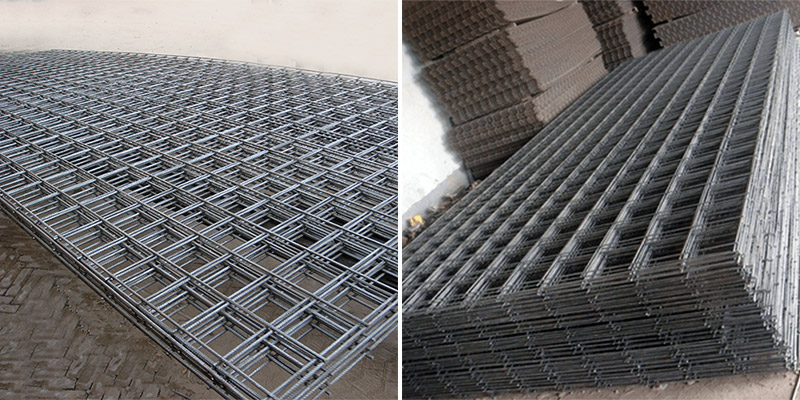

Reinforcement-Welded-Mesh

1.cyclone welded mesh:
     Steel bar welded grating is a kind of mesh type bar grating with the vertical and horizontal bars respectively welded together to a certain pitch and arranged at right angles to each other.
2.application:
    Steel bar welded grating is well received and popularly used as a kind of new, efficient and excellent quality concrete structure steel materials in various industrial and civil buildings. It is mainly used in making of floors, ceilings, wall body, concrete road, bridge surface, airport, tunnel lining, concrete piping, etc.
3. Features:
Welded bar grating for reinforcement is especially suitable for big area concrete engineering. Using of welded bar reinforcement can save about 10 percent of the total cost of the project. Steel bar grating costs less time and labor in work. It saves about 50 to 70 percent work time compared with common binding wire mesh. The use of bar grating can also strengthen the concrete parts to reduce surface breaking ratio.
4 Normal Size:
Wire Diameter:3mm--14mm
Aperture: the Horizontal from 50mm to 200mm
                  the Vertical from 25mm to 500mm
Mesh Width:0.5m--2.4m
Mesh Length: 1m--12m
