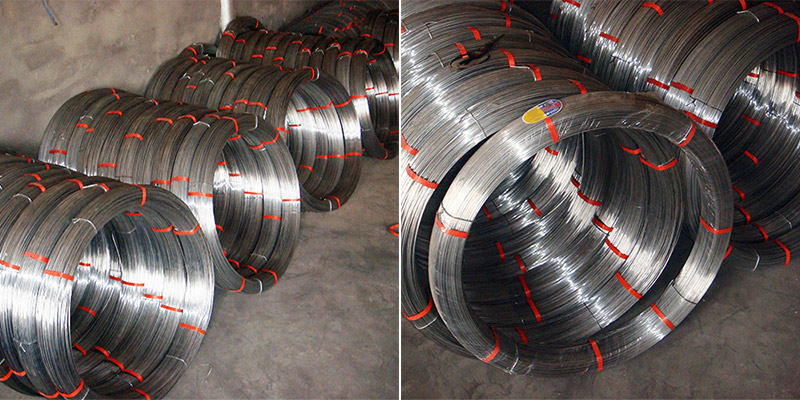

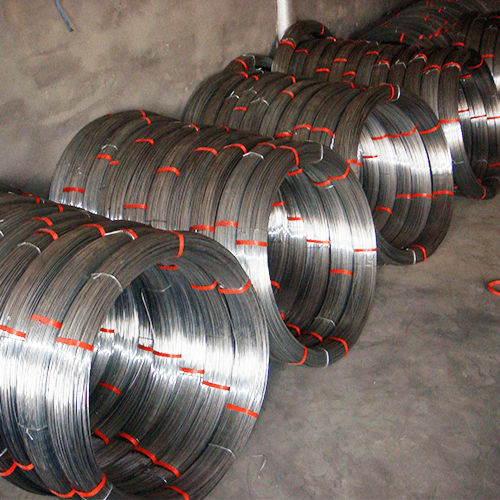

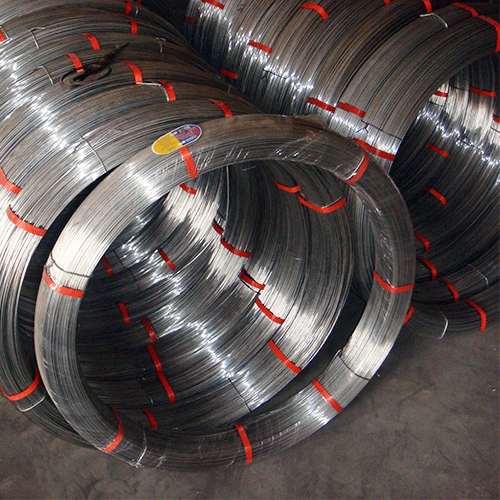

Oval Wire

Galvanized Oval wire is made from High tensile steel wire,the material is SAE1045,SAE1055 and SAE1065
  • JINNUO

  • Hebei Anping

  • ISO9001

  • Xingang, Tianjin

Quantity:
Galvanized Oval wire is made from High tensile steel wire,the material is SAE1045,SAE1055 and SAE1065, it is one hot dip Drawing wire.It is widely used in South Amercia countries as cattle fence
Applications for galvanized oval steel wire
Agriculture
Fencing
Horticulture
Fences to cattle farms in special sites as flooded lands and seashore farms
Vineyard
Trellis
Horticulture structures
Oval-Wire
Common specification

Size Specification Breaking Force Zinc coating Length Weight
17/15 3.0x2.4mm 700KGF Min.70g/m2 1000M 45KG
16/14 2.7x2.2mm 600KGF Min.70g/m2 1250M 45KG
15/13 2.4x2.0mm 500KGF Min.70g/m2 1500M 45KG
14/12 2.2x1.8mm 400KGF Min.70g/m2 1900M 45KG
N°12 2.4x2.8mm 500Mpa Min.50g/m2 465M 25KG
N°14 4.55x5.25mm 500Mpa Min.50g/m2 170M 25KG
