JINNUO
Hebei Anping
ISO9001
Xingang, Tianjin
Quantity: | |
---|---|

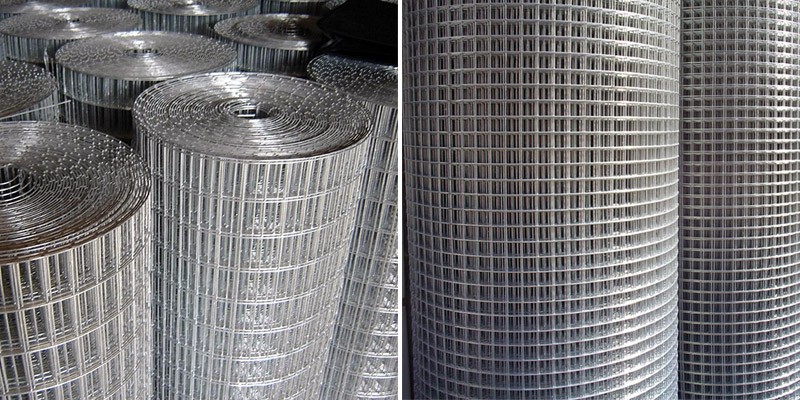

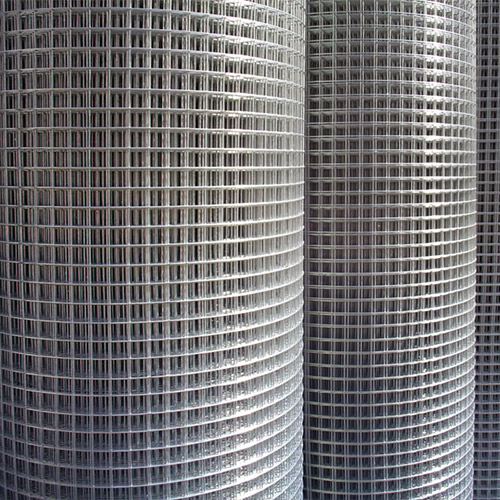

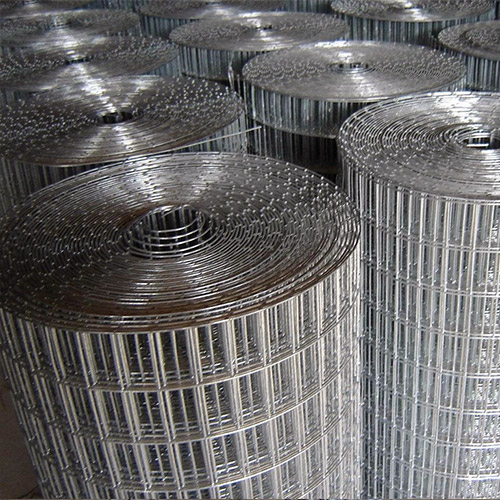

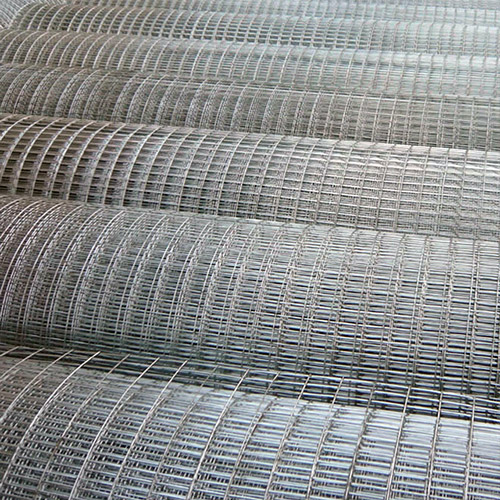

Electro Galvanized welded wire divides into Electro Galvanized Before Welded and Electro Galvanized After Welded wire mesh .The adoption plats the zinc carft after welding which made from high-quality iron wire by automatic equipment.The products surface are smooth ,with well-proportioned meshes,strong welded points and bright luster.Compared with general iron wire mesh,it is better in respects ofanti-corrostive and anti-corrostive and anti-rust.
Weaving and Stype:
Electro Galvanized after welding ,Electro Galvanized before welding
Characters:
strong welded points and bright luster .The mesh doesnt come loose even if cut in parts or being exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust .
Usage:
They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.
Specification:
Mesh Size | Wire Gauge Diameter | ||||
In MM | In Inch | BWG No. | MM | ||
6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm | ||
9.5mm | 3/8Inch | BWG23-19 | 0.64mm - 1.07mm | ||
12.7mm | 1/2Inch | BWG22-16 | 0.71mm - 1.65mm | ||
15.9mm | 5/8Inch | BWG21-16 | 0.81mm - 1.65mm | ||
19.1mm | 3/4Inch | BWG21-16 | 0.81mm - 1.65mm | ||
25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm - 1.65mm | ||
25.4mm | 1Inch | BWG21-14 | 0.81mm - 2.11mm | ||
38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm - 2.11mm | ||
25.4x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm - 2.11mm | ||
50.8mm | 2Inch | BWG16-12 | 1.65mm - 2.77mm | ||
50.8mm to 305mm | 2 to 12Inch | At Request |
