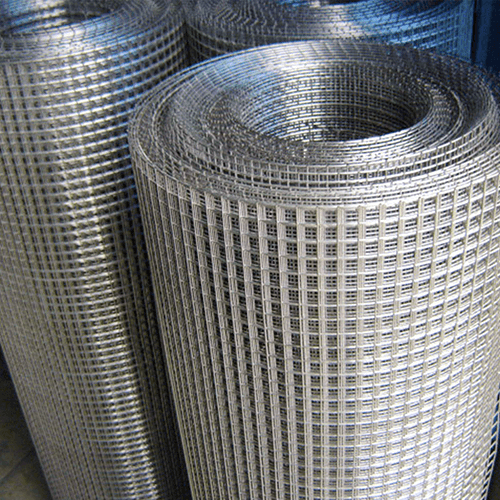

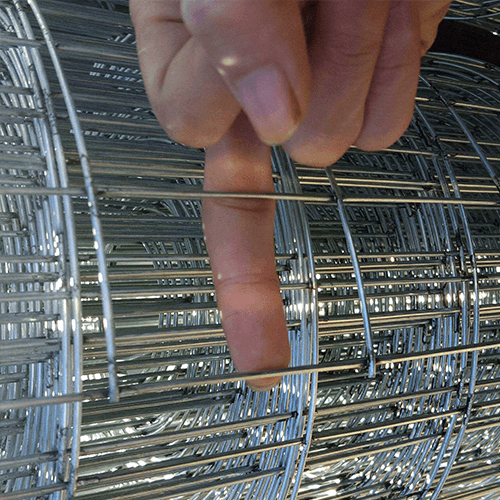

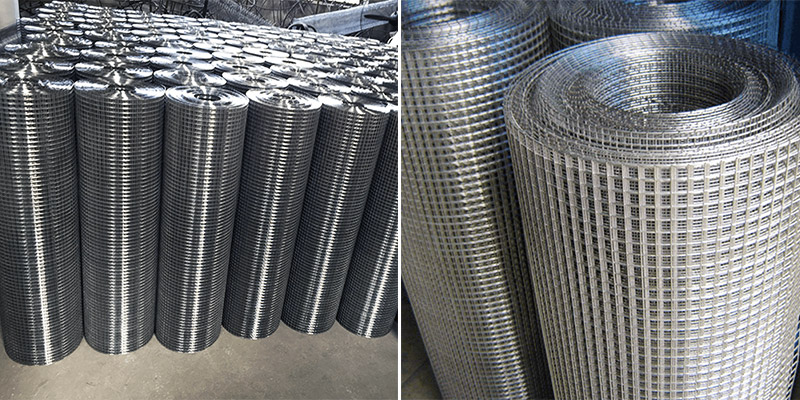

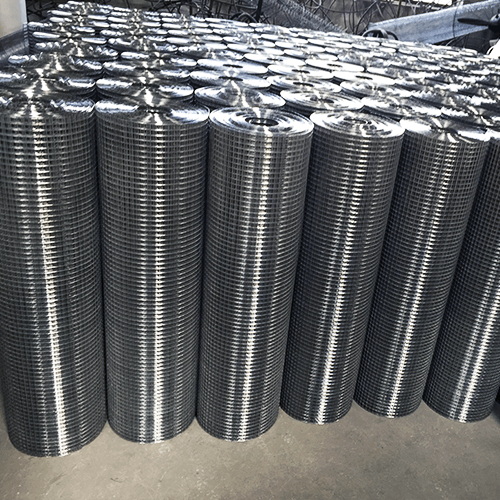

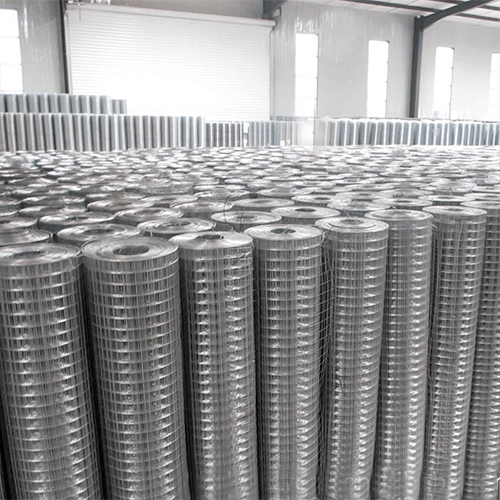

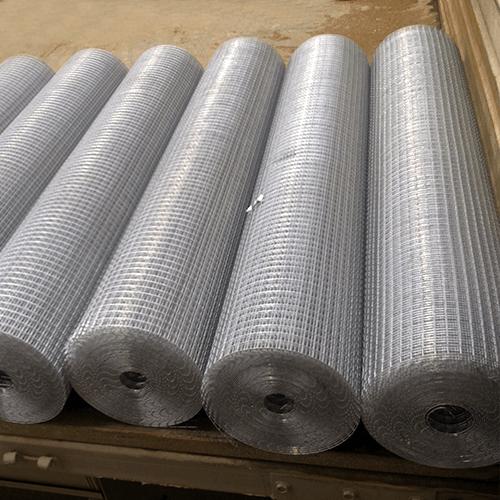

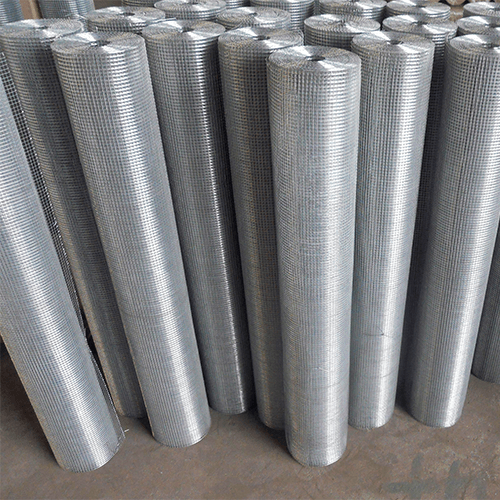

Stainless steel welded wire mesh is durable and strong, the material wire is rust resistant, corrosion resistant
Quantity: | |
---|---|
Applications:
Stainless steel welded metal mesh is widely used in industry, agriculture, construction, breeding, transport, mining exploitation, transport, entertainment facilities and other public places.For example, stainless steel welded mesh is used as security or isolation fencing for pedestrians’ pavement, transport center and other public places.
Mesh Size | Wire Diameter | Width | Length | ||
In Inch | In MM | BWG | mm | m | m |
1/4" x 1/4" | 6.4x6.4 | 25 | 0.5 | 0.914-1.0m | 5-30m |
3/8" x 3/8" | 10.6x10.6 | 22 | 0.71 | 0.914-1.0m | 5-30m |
1/2" x 1/2" | 12.7x12.7 | 21 | 0.81 | 0.914-1.5m | 5-30m |
5/8" x 5/8" | 16x16 | 20 | 0.9 | 0.914-1.5m | 5-30m |
3/4" x3/4" | 19.1x19.1 | 20 | 0.9 | 0.914-1.5m | 5-30m |
1" x 1" | 25.4x25.4 | 19 | 1.0 | 0.914-1.5m | 5-30m |
1" x 1/2" | 25.4x12.7 | 20 | 0.9 | 0.914-1.5m | 5-30m |
1-1/2" x 1-1/2" | 38x38 | 18 | 1.22 | 0.914-1.5m | 5-30m |
1" x 2" | 25.4x50.8 | 16 | 1.65 | 0.914-1.83m | 5-30m |
2" x 2" | 50.8x50.8 | 14 | 2.0 | 0.914-1.83m | 5-30m |
3" x 3" | 75x75 | 14 | 2.0 | 0.914-1.83m | 5-30m |
4" x4" | 100x100 | 14 | 2.0 | 0.914-1.83m | 5-30m |
