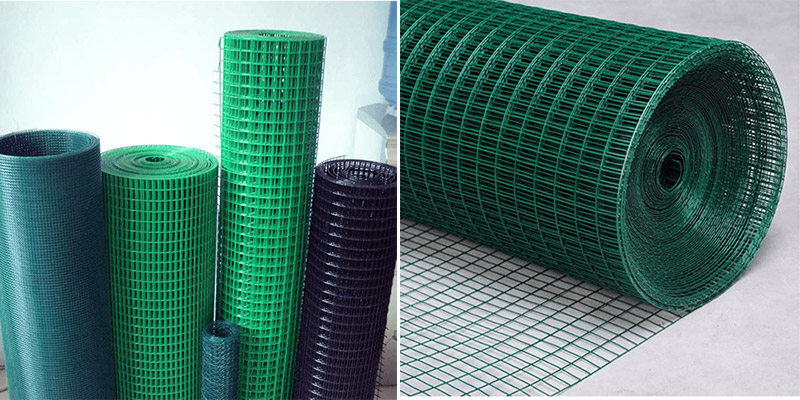

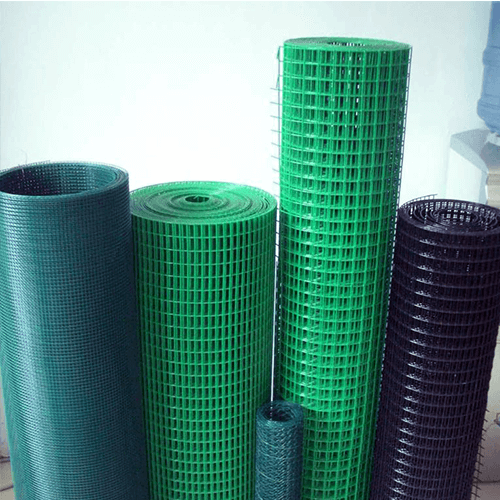

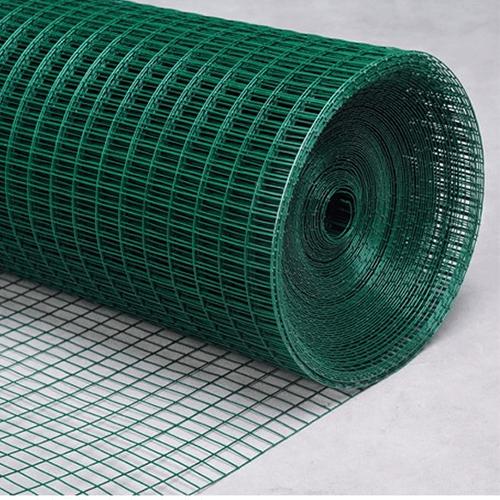

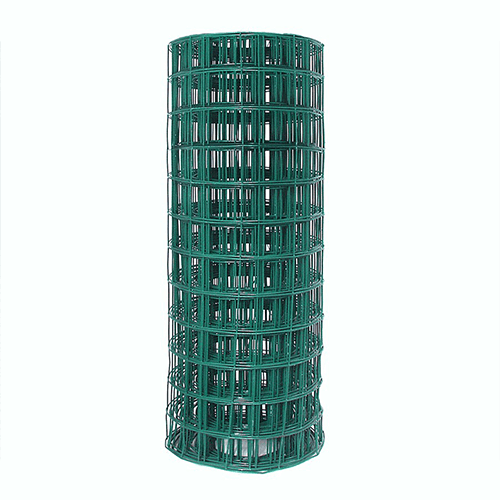

PVC Welded mesh offer high stability, as the longitudinal and cross wires are welded at the crossing points. Thanks to the variable mesh size and wire diameter, it is possible to use welded mesh in a wide range of industrial sectors.
Material:
High quality low carbon steel wire, stainless steel wire.
Feature:
Corrosion resisting and oxidation-resisting.
Application:
welded wire mesh with excellent corrosion resistance and oxidation resistance extensively used fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
Specification:
| Aperture | Wire diameter | |
| Inch | Mm | |
| 1/2" X 1/2" | 12.7 X12.7 | 0.5mm-0.8mm |
| 1/2" X 1/2" | 12.7 X12.7 | 0.6mm-0.9mm |
| 1/2" X 1/2" | 12.7 X12.7 | 0.7mm-1.1 mm |
| 1/2" X 1/2" | 12.7 X12.7 | 0.8mm-1.2 mm |
| 1/2" X 1/2" | 12.7 X12.7 | 0.9mm-1.3mm |
| 1/2" X 1/2" | 12.7 X12.7 | 1.0mm-1.4mm |
| 1/4" X 1/4" | 6.4 X6.4 | 0.5mm-0.8mm |
| 1/4" X 1/4" | 6.4 X6.4 | 0.6mm-0.9mm |
| 3/4" X 3/4" | 19.1X19.1 | 0.6mm-0.9mm |
| 3/4" X 3/4" | 19.1X19.1 | 0.7mm-1.1mm |
| 3/4" X 3/4" | 19.1X19.1 | 0.8mm-1.2mm |
| 3/4" X 3/4" | 19.1X19.1 | 1.0mm-1.4mm |
| 3/4" X 3/4" | 19.1X19.1 | 1.2mm-1.6mm |
| 5/8" X 5/8" | 16X16 | 0.8mm-1.2mm |
| 5/8" X 5/8" | 16X16 | 1.2mm-1.6mm |
| 1" X 1" | 25.4 X25.4 | 1.2mm-1.6mm |
| 1" X 1" | 25.4 X25.4 | 1.6mm-2.0mm |
| 1" X 1/2" | 25.4 X12.7 | 1.0mm-1.4mm |
| 1" X 1/2" | 25.4 X12.7 | 1.4mm-1.8mm |
| 2” X 2” | 50.8 X 50.8 | 1.3mm-1.7mm |
| 2” X 2” | 50.8 X 50.8 | 1.6mm-2.0 mm |
| 2” X 2” | 50.8 X 50.8 | 2.0mm-2.5 mm |
| 2” X 2” | 50.8 X 50.8 | 2.2mm-2.7 mm |
| 2” X 2” | 50.8 X 50.8 | 2.5mm-3.0mm |
| 2” X 2” | 50.8 X 50.8 | 3.0mm-3.5mm |
| 2" X 3" | 50.8 X 75 | 1.7mm-2.1mm |
| 2" X 4" | 50.8 X 100 | 1.8mm-2.3mm |
| 2” X 4” | 50.8 X 100 | 2.0mm-2.5mm |
| 3” X 4” | 75 X 100 | 2.5mm-3.0mm |
PVC Welded mesh offer high stability, as the longitudinal and cross wires are welded at the crossing points. Thanks to the variable mesh size and wire diameter, it is possible to use welded mesh in a wide range of industrial sectors.
Material:
High quality low carbon steel wire, stainless steel wire.
Feature:
Corrosion resisting and oxidation-resisting.
Application:
welded wire mesh with excellent corrosion resistance and oxidation resistance extensively used fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
Specification:
| Aperture | Wire diameter | |
| Inch | Mm | |
| 1/2" X 1/2" | 12.7 X12.7 | 0.5mm-0.8mm |
| 1/2" X 1/2" | 12.7 X12.7 | 0.6mm-0.9mm |
| 1/2" X 1/2" | 12.7 X12.7 | 0.7mm-1.1 mm |
| 1/2" X 1/2" | 12.7 X12.7 | 0.8mm-1.2 mm |
| 1/2" X 1/2" | 12.7 X12.7 | 0.9mm-1.3mm |
| 1/2" X 1/2" | 12.7 X12.7 | 1.0mm-1.4mm |
| 1/4" X 1/4" | 6.4 X6.4 | 0.5mm-0.8mm |
| 1/4" X 1/4" | 6.4 X6.4 | 0.6mm-0.9mm |
| 3/4" X 3/4" | 19.1X19.1 | 0.6mm-0.9mm |
| 3/4" X 3/4" | 19.1X19.1 | 0.7mm-1.1mm |
| 3/4" X 3/4" | 19.1X19.1 | 0.8mm-1.2mm |
| 3/4" X 3/4" | 19.1X19.1 | 1.0mm-1.4mm |
| 3/4" X 3/4" | 19.1X19.1 | 1.2mm-1.6mm |
| 5/8" X 5/8" | 16X16 | 0.8mm-1.2mm |
| 5/8" X 5/8" | 16X16 | 1.2mm-1.6mm |
| 1" X 1" | 25.4 X25.4 | 1.2mm-1.6mm |
| 1" X 1" | 25.4 X25.4 | 1.6mm-2.0mm |
| 1" X 1/2" | 25.4 X12.7 | 1.0mm-1.4mm |
| 1" X 1/2" | 25.4 X12.7 | 1.4mm-1.8mm |
| 2” X 2” | 50.8 X 50.8 | 1.3mm-1.7mm |
| 2” X 2” | 50.8 X 50.8 | 1.6mm-2.0 mm |
| 2” X 2” | 50.8 X 50.8 | 2.0mm-2.5 mm |
| 2” X 2” | 50.8 X 50.8 | 2.2mm-2.7 mm |
| 2” X 2” | 50.8 X 50.8 | 2.5mm-3.0mm |
| 2” X 2” | 50.8 X 50.8 | 3.0mm-3.5mm |
| 2" X 3" | 50.8 X 75 | 1.7mm-2.1mm |
| 2" X 4" | 50.8 X 100 | 1.8mm-2.3mm |
| 2” X 4” | 50.8 X 100 | 2.0mm-2.5mm |
| 3” X 4” | 75 X 100 | 2.5mm-3.0mm |
