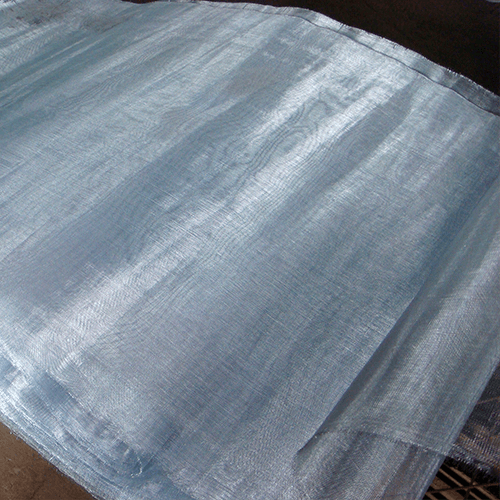

Window Screen Netting

Against flies and mosquito, machinery protection, ventilation material and receiving signals.

  • JINNUO
  • Hebei Anping
  • ISO9001
  • Xingang, Tianjin
Quantity:
Material: Aluminum Alloy Wire
Mesh Size:18x14,18x16,14x14,16x16,etc
Wire diameter:0.18-0.28mm
Width:30”-60”
Weaving:plain weaving
Type: Silver color aluminium Mesh, Bright finished Aluminium Mesh, Enamelled Aluminium Mesh, Epoxy Coated Aluminium Mesh.
Application: Against flies and mosquito, machinery protection, ventilation material and receiving signals.
Property: Light Weight, Good corrosion resistance and Rust resistance;
                   Edge weaving:close edge, weave edge, and cut edge

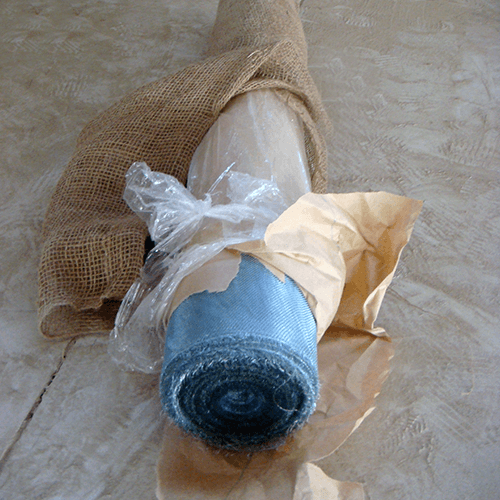

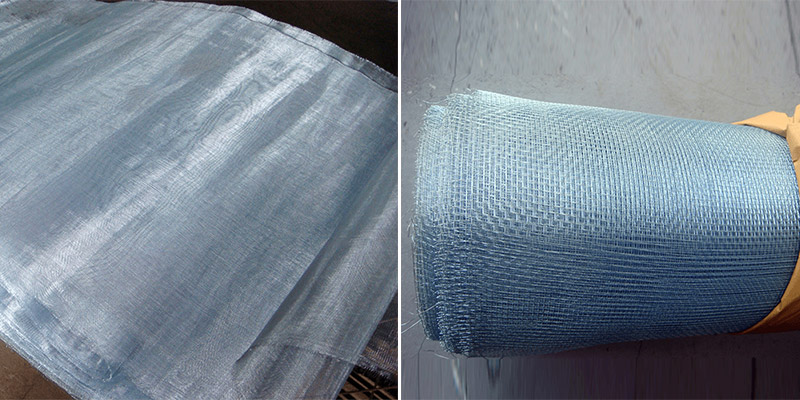

Packing: carbon box  Window-Screen-Netting

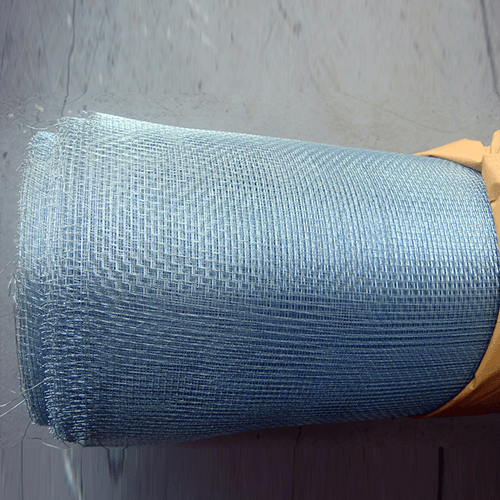

aluminum window screen mesh
1. Material: Aluminium Wire,Aluminium  alloy wire
2. Mesh: Generally  14 x 14, 16 x 14, 16x 16, 18 x 16, 18 x 18, 18x 14
3. Wire Dia: 0.14-0.50mm
4. Width:0.5-1.5m
5.Weaving: Plain weave
6.Property: Light weight, good corrosion resistance and rust resistance
7. Application:
widely used in hotels and buildings to prevent insects and bugs from entering.
It is provided in rolls or panels according to hte customers' request.
8. Features:
  a variety of colors available
. corrosion resistant, alkali resistant
. extremely tough and durable
. good flexibility & high strength
9.Specification:
 specification of aluminum window netting
Mesh Wire Diameter (mm) Width Length
12meshx12mesh 0.28 0.6m to 1.5m 100'
14meshx14mesh 0.25 0.6m to 1.5m 100'
14meshx14mesh 0.23 0.6m to 1.5m 100'
14meshx14mesh 0.22 0.6m to 1.5m 100'
14meshx14mesh 0.21 0.6m to 1.5m 100'
16meshx14mesh 0.25 0.6m to 1.5m 100'
16meshx14mesh 0.23 0.6m to 1.5m 100'
16meshx14mesh 0.22 0.6m to 1.5m 100'
16meshx14mesh 0.21 0.6m to 1.5m 100'
16meshx16mesh 0.25 0.6m to 1.5m 100'
16meshx16mesh 0.23 0.6m to 1.5m 100'
16meshx16mesh 0.22 0.6m to 1.5m 100'
16meshx16mesh 0.21 0.6m to 1.5m 100'
18meshx16mesh 0.25 0.6m to 1.5m 100'
18meshx16mesh 0.23 0.6m to 1.5m 100'
18meshx16mesh 0.22 0.6m to 1.5m 100'
18meshx16mesh 0.21 0.6m to 1.5m 100'
18meshx18mesh 0.25 0.6m to 1.5m 100'
18meshx18mesh 0.23 0.6m to 1.5m 100'
18meshx18mesh 0.22


Aluminum Screen Mesh
We want to cooperate with customers on long-term basis.
1--Materials: Aluminium Wire
2--Property: Light Weight, Good corrosion resistance and Rust resistance;
3--Weaving: Plain Weaving.
4--Application: Against flies and mosquito, machinery protection, ventilation material and receiving signals.
5--Type: Silver color aluminium Mesh, Bright finished Aluminium Mesh, Enamelled Aluminium Mesh, Epoxy Coated Aluminium Mesh.
Common specification:
14X14X0.22-0.45mmX2'&2.5'&3'&3.5'&3.75'&4'&5'(Width)X50'&100'(Length)
16X16X0.22-0.40mmX2'&2.5'&3'&3.5'&3.75'&4'&5'(Width)X50'&100'(Length)
16X16X0.22-0.40mmX2'&2.5'&3'&3.5'&3.75'&4'&5'(Width)X50'&100'(Length)
Specification Detail:
Mesh Wire Diameter (mm) Width Length
12meshx12mesh 0.28 0.6m to 1.5m 100'
14meshx14mesh 0.25 0.6m to 1.5m 100'
14meshx14mesh 0.23 0.6m to 1.5m 100'
14meshx14mesh 0.22 0.6m to 1.5m 100'
14meshx14mesh 0.21 0.6m to 1.5m 100'
16meshx14mesh 0.25 0.6m to 1.5m 100'
16meshx14mesh 0.23 0.6m to 1.5m 100'
16meshx14mesh 0.22 0.6m to 1.5m 100'
16meshx14mesh 0.21 0.6m to 1.5m 100'
16meshx16mesh 0.25 0.6m to 1.5m 100'
16meshx16mesh 0.23 0.6m to 1.5m 100'
16meshx16mesh 0.22 0.6m to 1.5m 100'
16meshx16mesh 0.21 0.6m to 1.5m 100'
18meshx16mesh 0.25 0.6m to 1.5m 100'
18meshx16mesh 0.23 0.6m to 1.5m 100'
18meshx16mesh 0.22 0.6m to 1.5m 100'
18meshx16mesh 0.21 0.6m to 1.5m 100'
18meshx18mesh 0.25 0.6m to 1.5m 100'
18meshx18mesh 0.23 0.6m to 1.5m 100'
18meshx18mesh 0.22
